TC-24D-WiFi Model 4K 48MP Hunting Camera Motion Detection Trailing Camera Hunting Camera IR Camera

1. Function introduction:

Image Sensor Type： 1/3-Inch1-Megapixel CMOS Sensor

Lens：  f=6.0mm  F/NO=2.4  FOV=72°

TFT Display Screen: 52x36mm (2.0");320(RGB)*240 DOT; 262K color

Number of IR LED： 22PCS High-power 850nm IR LEDs

Image Resolution: 24/20/16/12/8/5MP

Multiple Frame： 1-3 photos

Video Resolution： FULL HD 1080P/HD 720P

IR Filter: Full Automatic IR Filter

File Format : JPG/AVI(MJPG)

Max Night Vision Lighting Distance： 65ft/18 meters

TF Card： 1GB~64GB

Trigger Speed： 0.2-0.6 second

Working modes：Photo/ Video/ Photo + video

Total PIR sensor angle：90°



PIR Sensing Distance： 75ft/23 meters

PIR Interval：  2 seconds ~ 30mins (default 15 sec)

Date Time, Temperature, Camera Name set :Enable

Moon Phase:Auto

Pass Word Set：Digit set by yourself

Camera Name Set： Digit set by yourself

Timer Setting：Enable

Stand-by current： Less 0.2mA

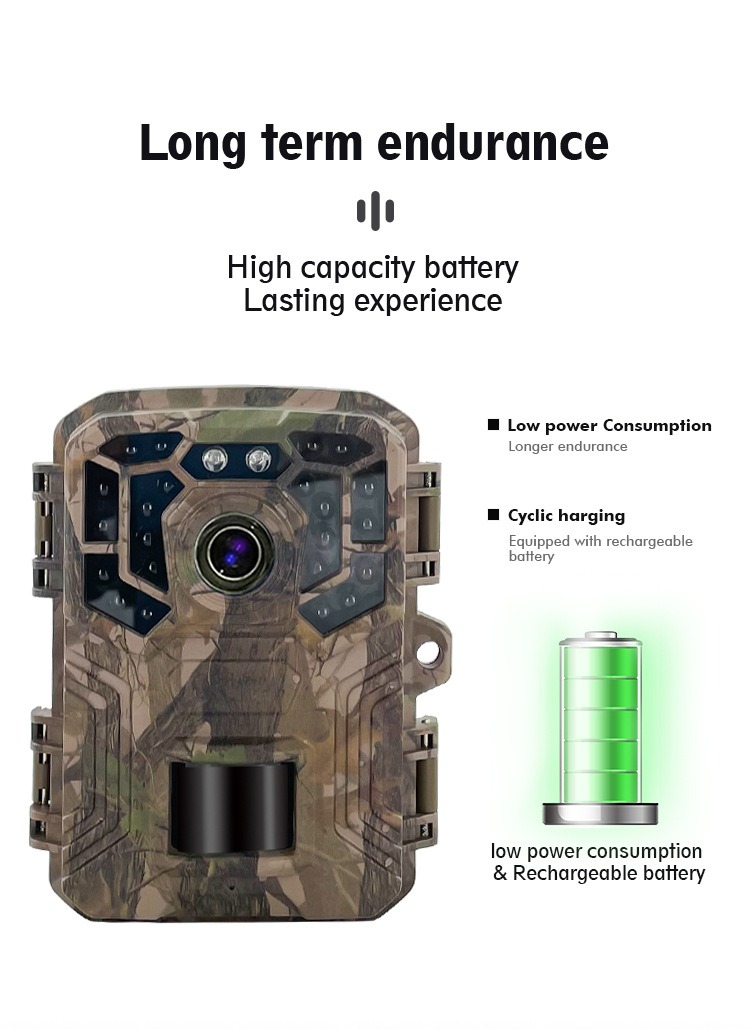

Stand-by time： About 8 months (LR6 AA  1.5V*4PCS battery)

MIC support：Enable

External：1 USB; 1 TF Card Holder;1 DC 6V in

Operation Temperature： -30 - 70°C

Operation humidity： 5% ~ 95%

Power Supply：4 AA Battery /DC 6V-1A

Water proof： IP65



2. Package info：

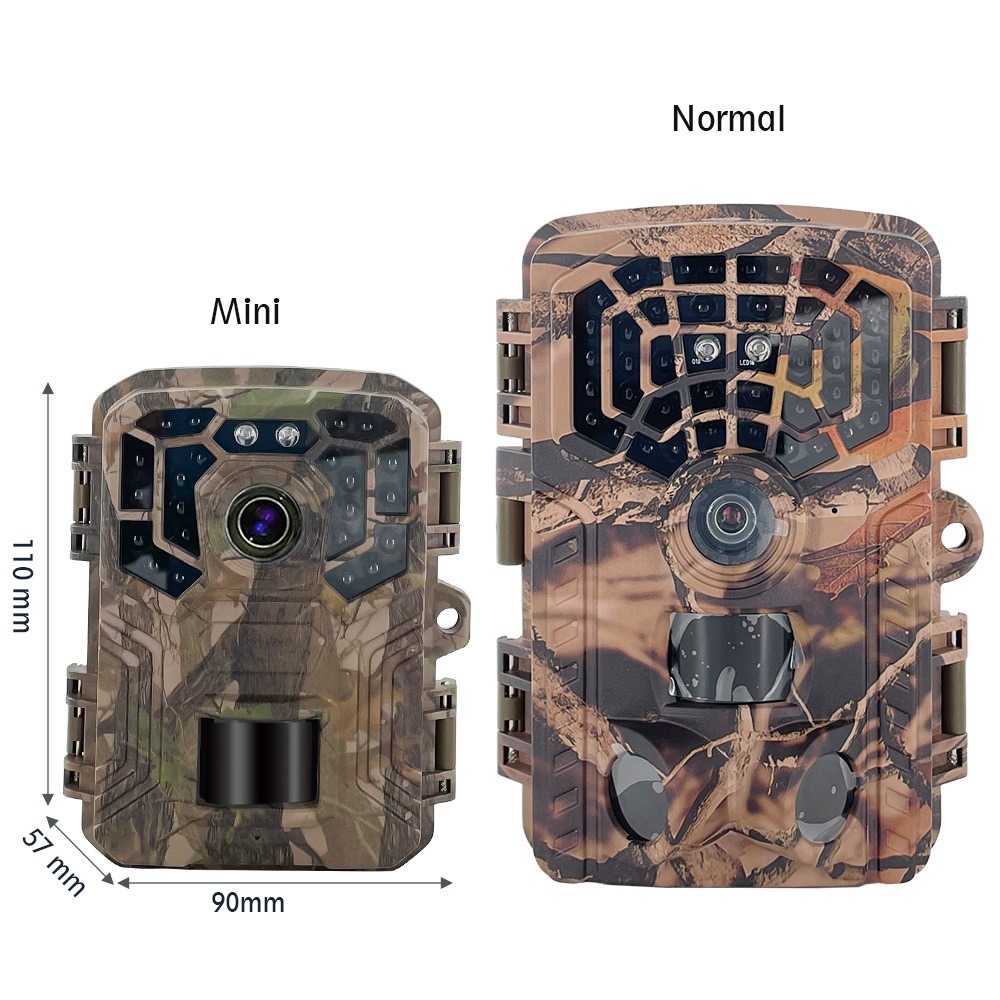

Bare machine dimensions:  110（L）×90（W）×56.5（H）mm

Package size: 155（L）×100（W）×67（H）mm

N.W.:172g    G.W.:290g

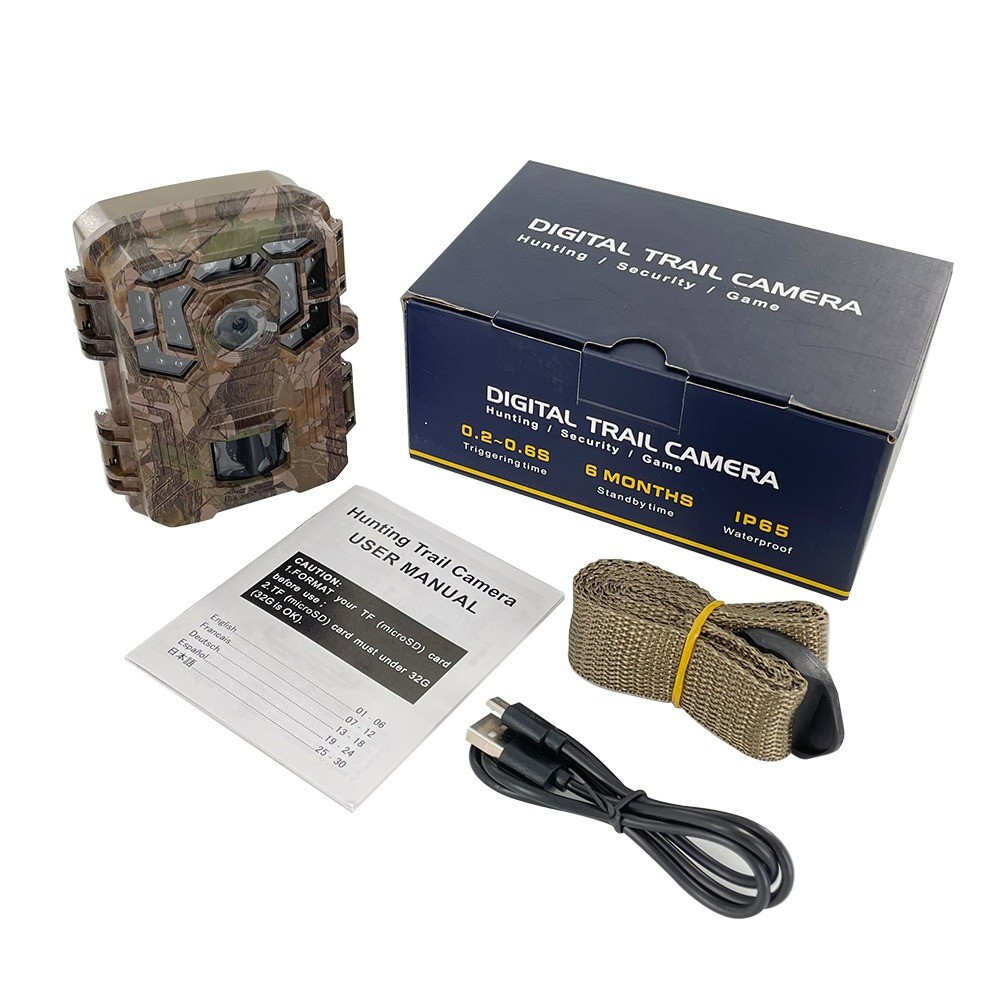

Accessory: 1 User Manual/1 USB cable/1 Bandage

Carton size: 430（L）×340（W）×315（H）mm

32pcs/CTN ：N.W.:10Kg    G.W.:11KG
